CTEK MXS5.0 12Volt 5 Amp Battery Charger

Be the first to review this product

Regular Price: $155.00

Special Price $145.00

Availability: In stock

Regular Price: $155.00

Special Price $145.00

Product Code: CTEKMXS5.0

CTEK MXS5.0T BATTERY CHARGER 12V 5 AMP FULLY AUTOMATIC FOR LEAD ACID BATTERIES

Product Details

Details


MXS 5.0 Amp 12 Volt

MXS 5.0 Battery Charger now with Automatic Temperature Compensation

Includes: Comfort Connect Clamps & Comfort Connect Eyelet M6





Powerful Charging Ideal for Small to Medium Batteries

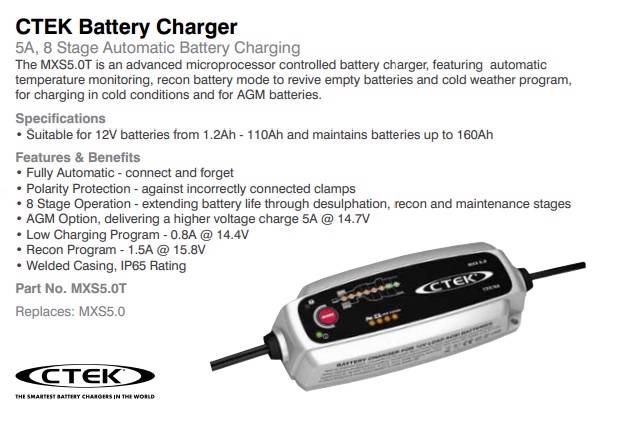

A 5A battery charger with CTEK's ‘new generation platform’, previously only found in CTEK's professional product line.  The MXS 5.0 is an advanced microprocessor controlled battery charger with automatic temperature compensation built in providing unrivalled performance on lead-acid batteries from 1.2Ah up to 110Ah.  The MXS 5.0 solves a broad range of battery problems and is the ideal charger for the user with high demands.

Features of the MXS 5.0 include diagnosis of battery condition to establish if it can receive and retain charge, patented automatic desulphation step and a special reconditioning step that will revive and restore deeply discharged and stratified batteries. AGM option is perfect for maximising performance and life of most Stop - Start batteries. The built in temperature compensation ensures ideal charging performance even in the most extreme conditions. Patented Float/Pulse maintenance makes the MXS 5.0 ideal for long - term maintenance. The entire process of battery testing, charging and maintenance is easily followed on the clear LED display.

The MXS 5.0 is a fully automatic "connect and forget" 12V charger with 8 charging steps and offers selectable SMALL BATTERY, and NORMAL BATTERY  programs. The RECOND and AGM options operate individually or together  in both SMALL BATTERY and NORMAL BATTERY programs providing great  flexibility for the user. Wide charging range on all lead-acid battery types  from 1.2Ah up to110Ah with additional maintenance capability to 160Ah.  Splash proof and dust proof (IP65).

The MXS 5.0 is easy and safe to use,  protects vehicle electronics, is spark-free, reverse polarity protected and short circuit proof.



Features ...








Specifications...




Volt 12V
Rated Voltage AC 220–240VAC, 50–60Hz
Charging voltage SMALL, NORMAL: 14.4V, COLD/AGM: 14.7V, RECOND: 15.8V
Min battery voltage 2.0V
Charging current 5A max
Current, mains 0.6A rms (at full charging current)
Back current drain <1Ah/month
Ripple <4%
Ambient temperature -20°C to +50°C, output power is reduced automatically at high temperatures
Charger type 8 step, fully automatic charging cycle
Battery types All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
Battery capacity 1.2–110Ah up to 160Ah for maintenance
Dimensions 168 x 65 x 38mm (L x W x H)
Insulation class IP65
Weight 0.6kg
Temperature Compensation Built in charge voltage compensation according to ambient temperature


Specifications

Additional Information

Technical Information
Model Number 1046
Volt 12V
Rated Voltage AC 220–240VAC, 50–60Hz
Charging voltage NORMAL: 14.4V, COLD/AGM: 14.7V, RECOND: 15.8V, SUPPLY: 13.6V
Min battery voltage 2.0V
Charging current 10A max
Current, mains 1.0A rms (at full charging current)
Back current drain <1Ah/month
Ripple <4%
Ambient temperature -20°C to +50°C, output power is reduced automatically at high temperatures
Charger type 8 step, fully automatic charging cycle
Battery types All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
Battery capacity 20–200Ah, up to 300Ah for maintenance
Dimensions 197 x 93 x 49mm (L x W x H)
Insulation class IP65
Weight 0.8kg
